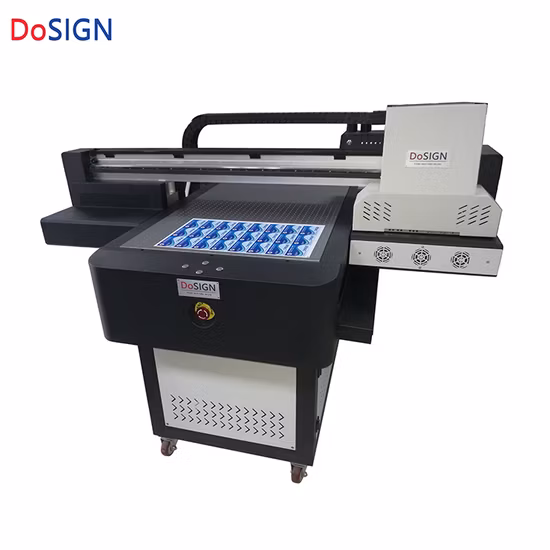

A1 6090 XP600 Printhead Digital License Plate Metal Printing Machine

Products

A1 6090 XP600 Printhead Digital License Plate Metal Printing Machine

A1 6090 XP600 Printhead Digital License Plate Metal Printing Machine

A1 6090 Xp600 Printhead Digital License Plate metal Printing Machine Overview: The Most Economic cheap UV Flatbed Printe

Send your inquiry

DESCRIPTION

Basic Info
Model NO. DS-6090U
Printing Speed 18 Sqm/H
System Supported Windowsxp64
Printing Type Digital Inkjet Printer
Printing Size 60cm*90cm
Printhead 2 or 3 Pieces Epson Tx800 Print Heads
Ink UV Curing Ink
Printing Color Cmyk / Cmyk+W / Cmyk+LC+Lm+W+Varnish
Cooling Method Water Circulation Cooling System
Dry System UV LED Lamp Drying System
Rip Software Free Maintop Software
Cleaning System Automatic up and Down Capping System
Printing Height 0-80mm 160mm Can Be Customized
Transport Package Export Standard Wood Box
Specification 215*122*130cm
Trademark dosign
Origin Shanghai, China
HS Code 8443322100
Production Capacity 2800sets/Year
Product Description
A1 6090 Xp600 Printhead Digital License Plate metal Printing Machine

Overview:

The Most Economic cheap UV Flatbed Printer with cost-effective DX8 Printheads

  • led-uv printer Printon Glass / Wood / Acrylic / Metal / Plastic / PVC board / Foam board / Ceramic tile / Stone...etc.
  • Anti-crash carriage system with auto height medias measurement system
  • Automatic up and down printhead cleaning system with clean rubber wiper
  • Lifespan technology maintanence.
  • White ink stir system to lengthen printhead working time
DS-6090U & DS-1015U A0 size and A1 size LED Flatbed UV Printer is the best choice for starting medium-scale business! This 60cm*90cm cm small size UV Flatbed Printer can print white ink continually without blocks, it can print on most flat materials.
Print any substrate materials directly
This 6090 uv printer is designed to print on both rigid and flexible materials . It instantly dry in prints directly on wood, PVC, acrylics, leather, glass, crystal, ceramics, rubber, aluminum, copper, etc… The printer is ideal for custom gifts, giveaways, Promotional Items, pens, golf ball, phone cases, Cards, etc..
LED UV curing system & 3D embossed and raised print
The ink system is based on an advanced LED UV curing system. The LED UV ink technology allows the creation of amazing 3D textured and raised printing effects.
High printing resolution and up to 2880 dpi
Empowered by the piezo print technology and anti-static print systems, The 6090 UV direct printer benefit from the variable dot printing technology. For sharp detailing and small text rendering, this uv printer prints up to 2880dpi in high resolution mode and fires ink droplets as fine as 1.5pl.
White ink and varnish ink supply
White ink channel for printing on dark and transparent materials.
More standard fixtures for optional
The matched fixtures help us print several pieces per time, even with different artworks. You can not only capture the small minimum to 1 piece, but also the large orders up to thousands of materials.Technology Hightlight
This dosign UV printer wildly use on almost all the flat materials, especially suitable for the gift items, promotion items, souvenir items, customize items etc; Without film plate-making, no need any MOQ limit, the color and picture are unlimited, low printing cost; Self design and own technology to make the stable printer with high quality to start a printing business.
The A1 size 6090 60cm*90cm and A0 size 1015 100cm*150cm UV Printer can install 2 pieces or 3 pieces 6 colors Epson TX800 DX8 Print heads, can print CMYK+LC+LM+White+Varnish at the same, and make the uv printing result to be the greatest.

This printer has spot uv varnish and spot white printing function, so that can print more vivid color!

Specifications:
Technical Specification
ModelDS-6090U
PrintheadPiezoelectric Printhead TX800 DX8
No. of Printhead2 Pieces DX8 ( 3 DX8 Print heads for option)
ColorCMYK / CMYKLcLm / White or Varnish
Printing Size60cm*90cm
Accepted Height80mm
Printing SpeedSpeed Nomal Quality 18 sqm/h
Speed Standard Quality 10 sqm/h
Speed Photo Quality 6 sqm/h
Media Thickness6cm (Can customize as customers' requirement)
Drying SystemUV LED Light System
Platform4 AIR DRAFT DISIONS
InkUV Hard Ink / Flexible Soft Ink
Resolution1440, 2160, 2880 dpi
Media TypeGlass, PMMA, Ceramic, Metal, Marble, Crystal, Paper, Wood, Leather, PVC, PP, PE, PTFE etc.
DurationAt Least 2 Years outdoor/ 8 Years indoor
Ink Capacity250ML/Bottle. (Auto detect alarm system, add ink during printing)
RIP SoftwareMainTop / PhotoPrint (option)
Control SystemWindows7 32/64 bit RAM>=8G
Operation Environment18ºC-26ºC(This is more effective control static and guarantee printing quality)
Humidity40%-70%(This is effectively control static)
Power SupplyMaximum Power 2.4KW; AC 50HZ/60HZ(±10%)>10A
Image formatTIFF, FPEG, EPS, PDF
Gross Weight330KG
Packing Dimension1.8*1.68*1.33m

UV Printer Details:

A1 6090 XP600 Printhead Digital License Plate Metal Printing Machine


Technology Service:
Technology service is our business life and source of doing much better. With 12 years ecperiences overseas technology service, the UV Printer has life-time technology support and one year warranty, our English speaking professional engineers will give 24x7 onsite support for trouble shooting, customers bought the UV Printer have 4 days technology training in factory as well.

A1 6090 XP600 Printhead Digital License Plate Metal Printing Machine


Packing & Delivery:Customer's Show:This is the top quality UV Printer DS-6090U with spot uv function!

Welcome you Contact & inquiry:

1----send us your inquiry online

2----contact your salesman directly whats'app:+86- 136- 7169- 4722

You will get big discount price soonest to get largest benifit and save your money.

More information for dtg printer, eco solvent printer, uv printer, sublimation printer, solvent printer etc, i and our powerful team is here to serve you all the time!

Thank you & cheers in advance~~~
